SV680 200V (ETHERCAT & FSOE)

Schaffner EMC Filter to suit Inovance 1ph 200V 1R6 200w

Product Code:
FN2090-3-06

Schaffner EMC Filter to suit Inovance 1ph 200V 2R8 400w

Product Code:
FN2090-4-06

Inovance Battery Back-Up for absolute feedback servo motor.(690226)

Product Code:
S6-C4

Schaffner EMC Filter to suit Inovance 1ph 200V 5R5 750w (08FN1003)

Product Code:
FN2090-8-06

Schaffner EMC Filter to suit Inovance 1ph 200V 1KW

Product Code:
FN2090-10-06

Inovance servo motor. 50w. Frame 40mm. Low Inertia. Un=230V. In=1.3A. Pn=50W. Mn=0.16Nm. Nn=3000rpm. 23Bit multiturn encoder. IP65 (shaft IP54). Mini-connector. keyed shaft. without brake

Product Code:
MS1H1-05B30CB-A330Z-INT

Inovance servo motor. 100w. Frame 40mm. Low Inertia. Un=230V. In=1.3A. Pn=100W. Mn=0.32Nm. Nn=3000rpm. 23Bit multiturn encoder. IP65 (shaft IP54). Mini-connector. keyed shaft. oil seal. without brake

Product Code:
MS1H1-10B30CB-A331Z-INT

Inovance servo motor. 200w. Frame 60mm. Low Inertia. Un=230V. In=1.5A. Pn=200W. Mn=0.64Nm. Nn=3000rpm. 23Bit multiturn encoder. IP65 (shaft IP54). Mini-connector. keyed shaft. oil seal. without brake

Product Code:
MS1H1-20B30CB-A331Z-INT

Inovance servo motor. 400w. Frame 60mm. Low Inertia. Un=230V. In=2.8A. Pn=400W. Mn=1.27Nm. Nn=3000rpm. 23Bit multiturn encoder. IP65 (shaft IP54). Mini-connector. keyed shaft. oil seal. without brake (01111536)

Product Code:
MS1H1-40B30CB-A331Z-INT

Inovance servo motor. 50w. Frame 40mm. Low Inertia. Un=230V. In=1.3A. Pn=50W. Mn=0.16Nm. Nn=3000rpm. 23Bit multiturn encoder. IP65 (shaft IP54). Mini-connector. keyed shaft. with brake

Product Code:
MS1H1-05B30CB-A332Z-INT

Inovance servo motor. 100w. Frame 40mm. Low Inertia. Un=230V. In=1.3A. Pn=100W. Mn=0.32Nm. Nn=3000rpm. 23Bit multiturn encoder. IP65 (shaft IP54). Mini-connector. keyed shaft. oil seal. with brake

Product Code:
MS1H1-10B30CB-A334Z-INT

Inovance servo motor. 200w. Frame 60mm. Low Inertia. Un=230V. In=1.5A. Pn=200W. Mn=0.64Nm. Nn=3000rpm. 23Bit multiturn encoder. IP65 (shaft IP54). Mini-connector. keyed shaft. oil seal. with brake

Product Code:
MS1H1-20B30CB-A334Z-INT

Inovance SV680N Servo drive for single axis applications Un=1x 200w. 1x 200-240V AC. In=1.6A. Imax=5.8A. EtherCAT. STO. IP20

Product Code:
SV680NS1R6I-GINT

Inovance servo motor. 1000w. Frame 80mm .Low Inertia. Un=230V. In=7.6A. Pn=1000W. Mn=3.18Nm. Nn=3000rpm. 23Bit multiturn encoder. IP65 (shaft IP54). MIL-connector. keyed shaft. oil seal. without brake

Product Code:
MS1H1-10C30CB-A331Z-INT

Inovance servo motor. 400w. Frame 60mm. Low Inertia. Un=230V. In=2.8A. Pn=400W. Mn=1.27Nm. Nn=3000rpm. 23Bit multiturn encoder. IP65 (shaft IP54). Mini-connector. keyed shaft. oil seal. with brake (01111537)

Product Code:
MS1H1-40B30CB-A334Z-INT

Inovance SV680N Servo drive for single axis applications Un=1x 200-240V AC, In=2.8A, Imax=10.1A, Pn= 0.4kW EtherCAT, STO, IP20 (01053757)

Product Code:
SV680NS2R8I-GINT

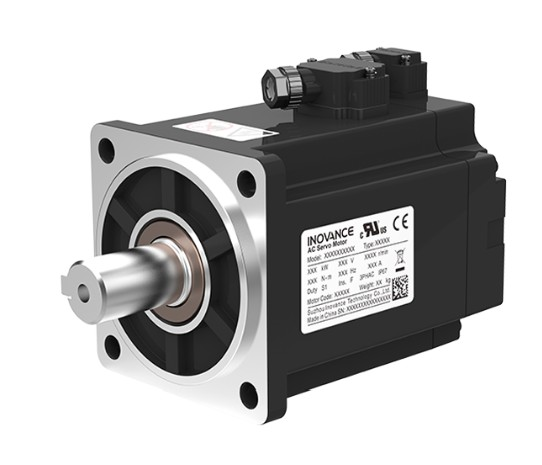

Inovance servo motor. 750w. Frame 80mm. Low Inertia. Un=230V. Low Inertia. In=4.8A. Pn=750W. Mn=2.39Nm. Nn=3000rpm. 23Bit multiturn encoder. IP65 (shaft IP54). Mini-connector. keyed shaft. oil seal. without brake (01111539)

Product Code:
MS1H1-75B30CB-A331Z-INT

Inovance servo motor. 750w. Frame 80mm. Low Inertia. Un=230V. In=4.8A. Pn=750W. Mn=2.39Nm. Nn=3000rpm. 23Bit multiturn encoder. IP65 (shaft IP54). Mini-connector. keyed shaft. oil seal. with brake

Product Code:
MS1H1-75B30CB-A334Z-INT

Inovance SV680 servo amplifier.750w. 1x 200-240V AC. In=5.5A. Imax=16.9A. EtherCAT. STO. IP20

Product Code:
SV680NS5R5I-GINT

Inovance SV680 servo amplifier.1000w. 1/3x 200-240V AC. In=7.6A. Imax=17A. EtherCAT. STO. IP20.

Product Code:
SV680NS7R6I-GINT

Inovance SV680 servo amplifie, EtherCAT Safety Function (FsoE). 400w. 1x 200-240V AC. In=2.8A. Imax=10.1A. EtherCAT. STO. IP20.

Product Code:
SV680NS2R8S-GINT

Inovance servo motor. Frame 100mm. Medium Inertia. 200V. 1Kw. Rated Torque 3.18Nm. Rated Speed 3000rpm. 23Bit multiturn encoder. IP65 (shaft IP54). keyed shaft. oil seal. with brake

Product Code:
MS1H2-10C30CB-A334Z-INT

Inovance servo motor. 1500w. Frame 100mm. Low Inertia. Un=230V. In=10.8A. Pn=1500W. Mn=4.9Nm. Nn=3000rpm. 23Bit multiturn encoder. IP65 (shaft IP54). MIL-connector. keyed shaft. oil seal. without brake

Product Code:
MS1H2-15C30CB-A331Z-INT

Inovance servo motor. Frame 100mm. Medium Inertia. 200V. 1Kw. Rated Torque 3.18Nm. Rated Speed 3000rpm. 23Bit multiturn encoder. IP65 (shaft IP54). keyed shaft. oil seal. with brake

Product Code:
MS1H2-10C30CB-A331Z-INT

Inovance SV680 servo amplifier. 1500w. 1/3x 200-240V AC. In=11.6A. Imax=28A. EtherCAT. STO. IP20

Product Code:
SV680NS012I-GINT
